⌘⌘ Wolfgang Fahl

Wolfgang wf@bitplan.com is from Willich/Germany. I am a teacher for software architecture My first contact with MediaWiki was about the Waiheke Island community wiki in 2008 You'll find the electric vehicles of our company and family on the internet:
Peugeot Ion	Giant Explore

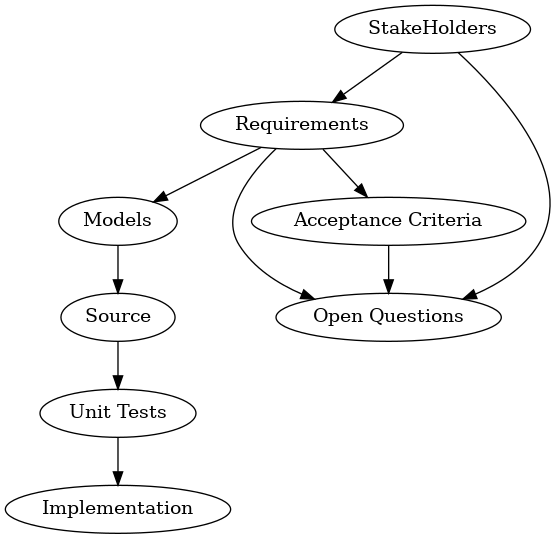

⌘⌘ Touchable Software Engineering

https://www.flanschen-fitting-shop.de/1030-tm_large_default/schraube-m10x35.jpg

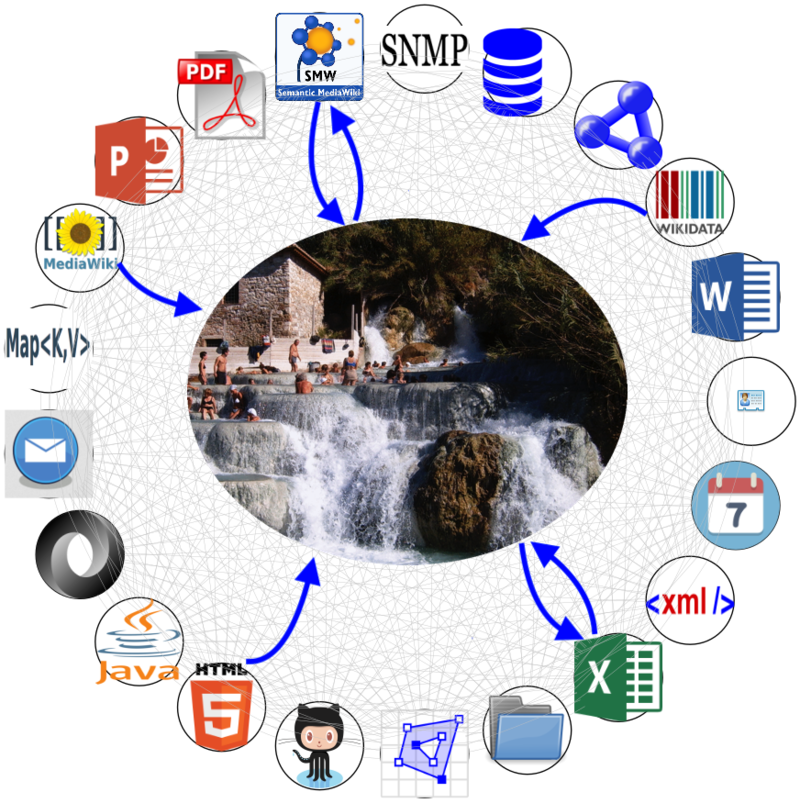

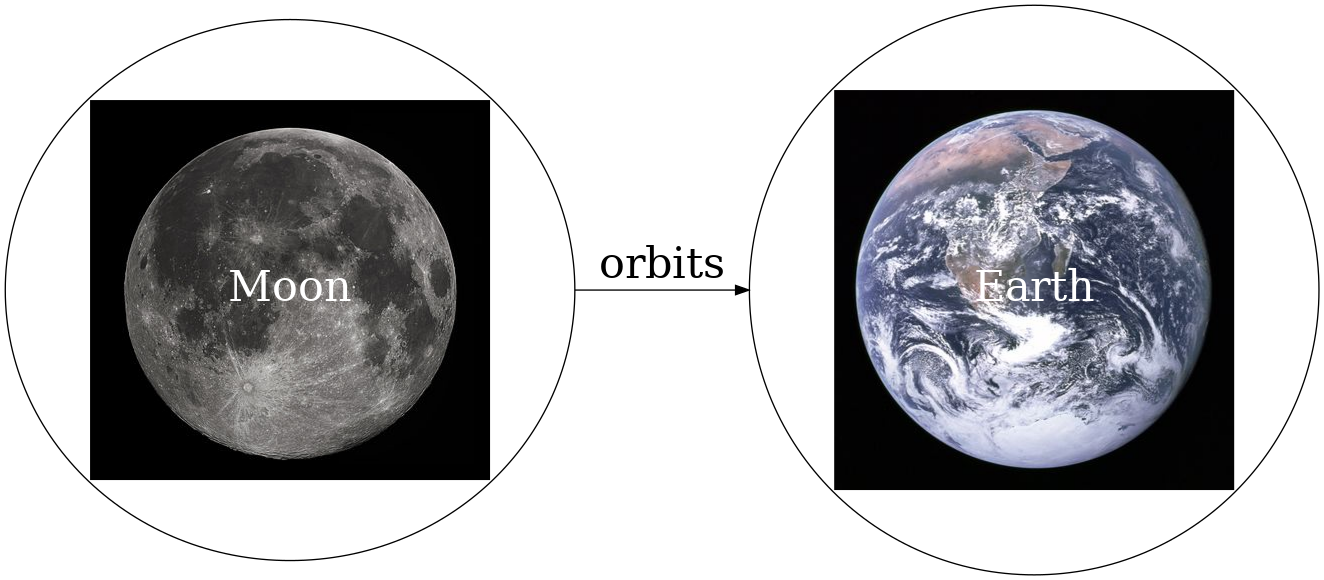

⌘⌘ The World as a Graph

If the world is represented as a Graph it would be nice to have a Simple Graph Navigation Language

see SMWCon Fall 2018

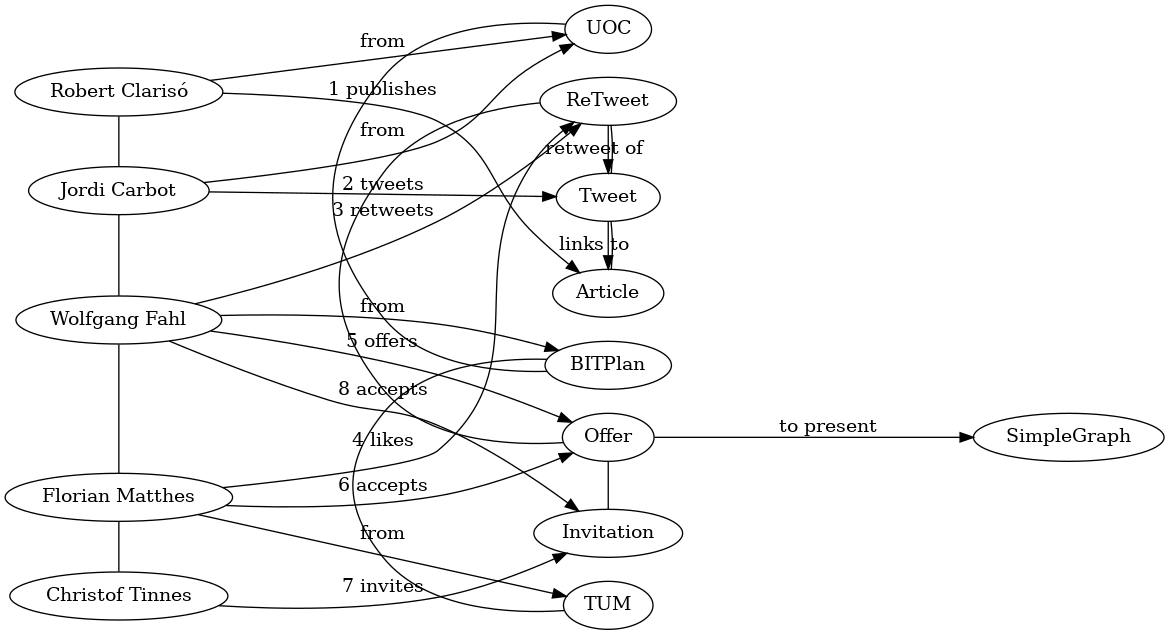

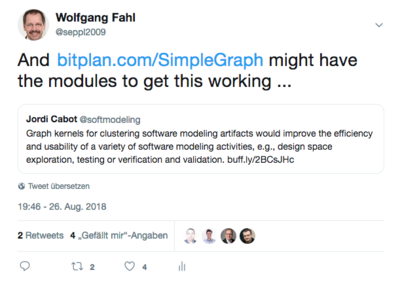

⌘⌘ Why I am here

⌘⌘ Prehistory

see also PreHistory (clickable)

⌘⌘ Graph Kernels for Model Driven Software Engineering

• https://modeling-languages.com/graph-kernels-model-driven-software-engineering/

5 Steps

1. Decide how the model should be encoded into a graph
2. Translate each of the models into a labeled graph
3. Select the graph kernel algorithm to be used
4. Load all the graphs and compute the graph kernel
5. Exploit the information in the kernel matrix

⌘⌘ Use SimpleGraph for the 5 Steps

⌘⌘ Step 1: Decide how the model should be encoded into a graph

Each SimpleGraph Module transforms data from some API to a Graph representation. The transformation is usually as "straight-forward" or "natural" as possible.

⌘⌘ Step 2: Translate each of the models into a labeled graph

Each SimpleGraph Module uses the following steps to translate from an API to the graph

1. connect()
2. moveTo()

⌘⌘ Step 3: Select the graph kernel algorithm to be used

SimpleGraph is based on Apache Gremlin/Tinkerpop so all the algorithm and libraries around this graph environment are directly available. If a different graph kernel and or algorithm is needed than the graph can be translated / imported via standard graph import/export formats and or import/export adapters and utilities.

BITPlan e.g. often uses Semantic MediaWiki as a suitable environment.

⌘⌘ Step 4: Load all the graphs and compute the graph kernel

Simplegraph is based on the Hub&Spoke approach. Any combination of modules/API can be applied. Currently there are some 20 different modules to choose from.

⌘⌘ Step 5: Exploit the information in the kernel matrix

There are two modes for exploiting the information:

1. OLAP - Online Analytical Processing / Graph Query
2. OLTP - Online Transaction Processing / Graph Traversal

⌘⌘ What is SimpleGraph?

Simplegraph allows to work with "graphized" information source from a combination of APIs that are made available as modules.

Module	System wrapped	API exposed	Description
FileSystem	FileSystem	java.io.File	makes your FileSystem accessible via the Java FileSystem API
GitHub	GitHub	GitHub GraphQL Api v4	makes GitHub content accessible to Graph processing.
Java	Java	javaparser	makes Java code parse results accessible to Graph processing.
Mail	Mail	E-Mail access for rfc822 and MIME formatted Mailbox files (e.g. Thunderbird)	makes Mail data available via Apache Mime4J
SMW	SMW	SemanticMedia Wiki API	makes Semantic MediaWiki accessible via the SMW API
XML	XML	org.w3c.dom	makes XML dom parse results accessible to Graph processing.

⌘⌘ What is Apache TinkerPop/Gremlin?

Apache Tinkerpop is an Open Source project. Gremlin is the GraphTraversal Language for it.

• OLTP - Online Transaction Processing - Navigation and Processing
• OLAP - Online Analytical Processing - Queries
• - Example - Ancestors of King James

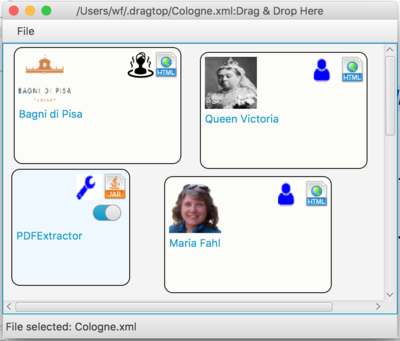

⌘⌘ SimpleGraph Dragtop

The Dragtop Open Source Software makes the SimpleGraph modules available for direct access from your Desktop. By simple drag and drop of the input onto the dragtop and then dropping a "tool" onto the dragtop you can combine the module functionality as you see fit.

⌘⌘ Example: The 5 Steps in SimpleGraph

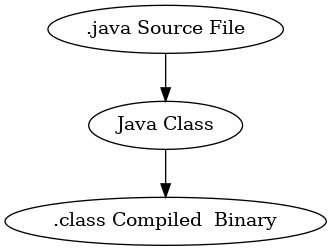

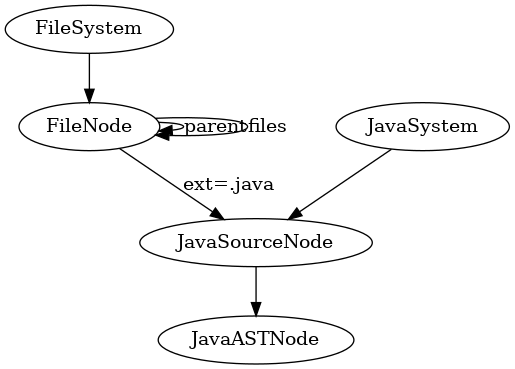

⌘⌘ Step 1: Decide how the model should be encoded into a graph

• .java Source Files: FileSystem module
• Java Classes: JavaSystem
• .class Files: Filesystem module (Bytecode parser?)

⌘⌘ Step 2: Translate each of the models into a labeled graph

⌘⌘ Step 3: Select the graph kernel algorithm to be used

FileSystem fs=new FileSystem();
FileNode start = (FileNode) fs.connect("").moveTo(aroot.getPath());
start.recursiveOut("files",Integer.MAX_VALUE);
List<Vertex> javaFileNodes=start.g().V().has("ext", "java").toList();
List<Vertex> classFileNodes=start.g().V().has("ext", "class").toList()

⌘⌘ Step 4: Load all the graphs and compute the graph kernel

<HTML5video width="960" height="600" controls autoplay="false" loop="false">JavaAnalyzerDragAndDrop2019-02-18</HTML5video>

⌘⌘ Step 5: Exploit the information in the kernel matrix

1. Visualize
2. Store
3. Mix and match with other sources

⌘⌘ How to benefit and participate

• Stay in touch with Wolfgang Fahl
• Ask StackOverFlow questions on SimpleGraph
• Participate in the GitHub SimpleGraph Open Source Project
• Join the SimpleGraph Mailinglist
• Collaborate on Projects with BITPlan
• Write papers related to SimpleGraph

⌘⌘ Ideas for SimpleGraph future Progress

• more Software-Engineering related modules e.g. for Modelling,Requirements Engineering
• more Visualization options e.g. like/with prefuse
• Visualized Editor e.g. like/with blockly
• better integration with other programming languages

⌘⌘ Questions/Discussion
